Ventilators
Ventilators bring fresh air into your home without losing heating or cooling energy. Their unique energy exchange system transfers the heating or cooling energy from the stale air being exhausted from your home to the fresh air the ventilator brings into your home.
If your family suffers from allergies, ventilators are a much better alternative for introducing fresh air into your home versus opening your windows. They also do a great job of reducing cooking and pet odors, smoke and other pollutants out of your home.

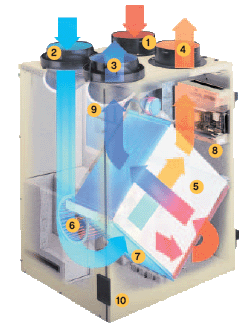

How it works:
- Internal air intake – draws in stale indoor air, directing it through the heat exchanger core.
- External air intake – draws outside air, venting it through the air filter.
- Internal air exhaust – vents indoor air outside from the heat exchanger core. Up to 84% of the indoor heat has been removed, helping minimize utility costs.
- Fresh air exhaust – vents conditioned, heated outdoor air into your living areas.
- High efficiency heat recovery core – extracts heat from stale indoor air and transfers it to fresh outdoor air for maximum comfort with little heat loss. This core also removes excess humidity from recirculated air – lower humidity levels help you stay comfortable at higher temperatures in the summer and lower temperatures in the winter.
- Ventilator motor – moves air through the system efficiently and quietly.
- Air filter – cleans outdoor air of small particles before they circulate through your home.
- Electronic circuit board – adjusts air circulation modes and motor speeds.
- Damper defrost – helps prevent frost from forming within the system, eliminating the need for a supplemental energy -consuming electric defroster. This defroster engages when temperatures drop below 23 degrees Fahrenheit.
- Briefcase-style exterior latches – allow easy filter changes with no tools required.
- Simple wall control – makes operating the HRV easy and convenient.

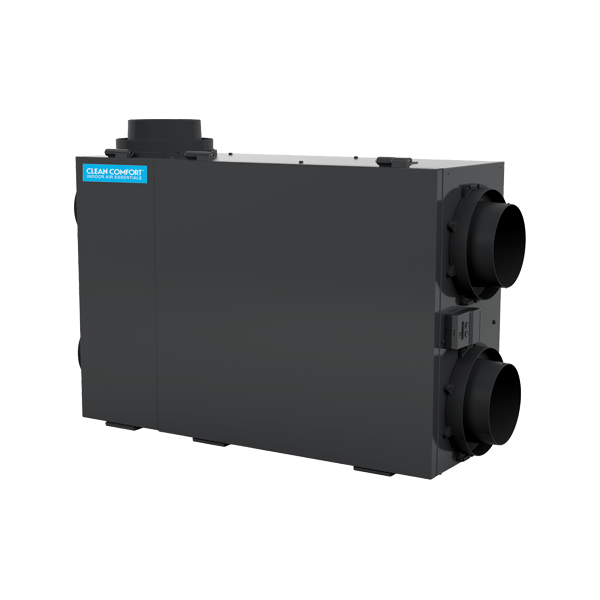

Ventilator Product Offering
Energy Recovery Ventilator
Model Family: VE70220
Airflow:
Sound Level: Quiet operation
Warranty: Five year Limited Warranty on Parts
Manufacturer’s Stated Benefits:
- Three operating modes (Intermittent, Continuous and High)
- 100% variable speed
- Advanced proportional supply fan shut-down defrost sequence
- Single-person mounting system via wall bracket
- Dual permanently lubricated PSC motors
- Integrated auxiliary furnace interlock relay
- Ventilator can be balanced by adjusting each motor independently; no balancing dampers required
- Connection terminals for optional wall controls
- Wall-mount bracket included
- Integrated balancing pressure taps
Energy Recovery Ventilator
Model Family: VE30160
Airflow: N/A
Sound Level: Quiet operation
Warranty: Five year Limited Warranty on Parts
Manufacturer’s Stated Benefits:
- Three operating modes (Intermittent, Continuous and High)
- 100% variable speed
- Advanced proportional supply fan shut-down defrost sequence
- Single-person mounting system via wall bracket
- Dual permanently lubricated PSC motors
- Integrated auxiliary furnace interlock relay
- Ventilator can be balanced by adjusting each motor independently; no balancing dampers required
- Connection terminals for optional wall controls
- Wall-mount bracket included
- Integrated balancing pressure taps
Heat Recovery Ventilator
Model Family: VH30160
Airflow: N/A
Sound Level: Quiet operation
Warranty: Five year Limited Warranty on Parts
Manufacturer’s Stated Benefits:
- Three operating modes (Intermittent, Continuous and High)
- 100% variable speed
- Advanced proportional supply fan shut-down defrost sequence
- Single-person mounting system via wall bracket
- Dual permanently lubricated PSC motors
- Integrated auxiliary furnace interlock relay
- Ventilator can be balanced by adjusting each motor independently; no balancing dampers required
- Connection terminals for optional wall controls
- Wall-mount bracket included
Heat Recovery Ventilator
Model Family: VH30120R
Airflow: N/A
Sound Level: Quiet operation
Warranty: Five year Limited Warranty on Parts
Manufacturer’s Stated Benefits:
- Four operating modes (Intermittent, Continuous, Recirculation and High)
- 100% variable speed
- Advanced proportional supply fan shut-down defrost sequence
- Single-person mounting system via wall bracket
- Dual permanently lubricated PSC motors
- Integrated auxiliary furnace interlock relay
- Ventilator can be balanced by adjusting each motor independently; no balancing dampers required
- Connection terminals for optional wall controls
- Wall-mount bracket included
