Packaged Units

Our complete line of packaged systems include Packaged Air Conditioners, Packaged Gas Furnaces and Air Conditioners, Packaged Heat Pumps and Packaged Hybrid Heat. These self-contained systems are located outside of the home, mounted on the ground or the roof, and ducted into the home.

Just like individual furnaces, air conditioners and heat pumps, these package units carry SEER/SEER2, EER/EER2, AFUE and HSPF/HSPF2 ratings. The higher the rating, the more energy efficient the unit is. The Department of Energy’s (DOE) new minimum efficiency standards vary by region, so your choice of package units will depend on where you live.

The DOE’s regional breakdown by state is as follows:

  • North
    • 14.0 SEER/ 13.4 SEER2
    • 8.0 HSPF/6.7 HSPF2
    • 80% AFUE
  • Southeast
    • 15.0 SEER/ 14.3 SEER2
    • 8.0 HSPF/6.7 HSPF2
    • 90% AFUE
  • Southwest
    • 15.0 SEER/ 14.3 SEER2
    • 8.0 HSPF/6.7 HSPF2
    • 90% AFUE

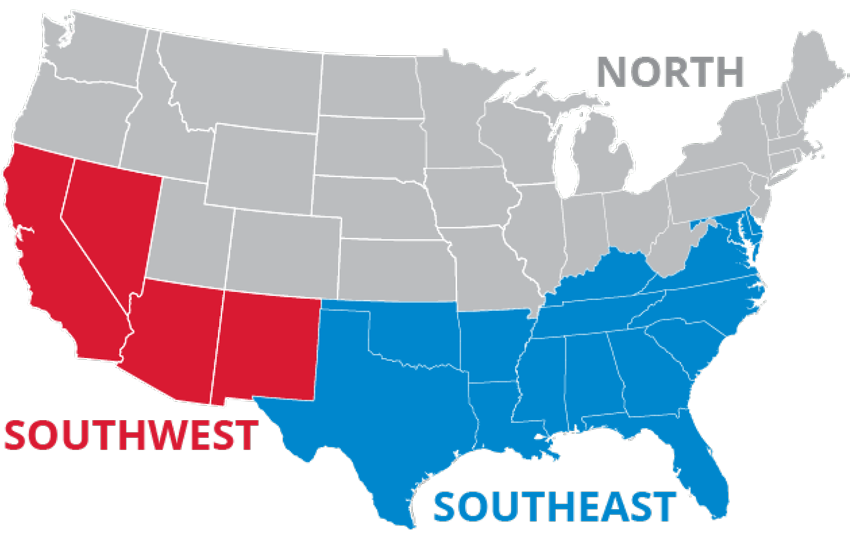

DOE Regional SEER Breakdown Map

SEER/SEER2 And HSPF/HSPF2

SEER2 is an updated rating standard introduced by the DOE. SEER2 standards are intended to provide a better gauge of typical home operating conditions whereas the older SEER rating utilized very precise protocols to determine ratings in ideal conditions. SEER2 standards include updated testing means that give a better indication of how a unit will operate in the real world.

HSPF2 is the newest type of rating system that expands on the basic HSPF scale.

Much like miles-per-gallon for a car, SEER/SEER2, EER/EER2, AFUE and HSPF/HSPF2 offer an easy way to compare efficiencies of different products – the higher the rating, the more efficient the unit. Just be sure you are comparing either SEER vs SEER or SEER2 vs SEER2 (same for EER/EER2 and HSPF/HSPF2).

EER2 versus SEER2

EER2 and SEER2 both evaluate an air conditioner’s energy efficiency, but they’re concerned with two different types of temperature conditions:

  • EER2 measures an air conditioner’s efficiency at the peak cooling temperature of 95°F.
  • SEER2 measures an air conditioner’s efficiency throughout an entire cooling season, with temperatures ranging from 65°F to 104°F.

Right-Size Your HVAC Packaged Units. Give ABC Heating & Air Conditioning A Call Today!

We carry a wide offering that includes advanced features such as 2-stage compressors, variable speed fans and quiet operation. Call us now at (217) 352-5400.

Air Conditioning Only Product Offering

APC15H

Energy-Efficient Packaged Air Conditioner

View Brochure
Model Family: APC15H
Efficiency SEER/SEER2: Up to 15 SEER
Efficiency EER/EER2: N/A
Energy Star Rated: ENERGY STAR®
Sound Level: Compressor sound blanket
Blower Motor: Variable-speed ECM indoor blower motor
Refrigerant Type: R-410A
Compressor: Energy-efficient scroll compressor
Factory Warranty Parts: 10-Year Parts Limited Warranty
Factory Warranty Compressor: Lifetime Compressor Limited Warranty
Manufacturer's Stated Benefits:
  • Heavy-Gauge Galvanized Steel Enclosure
  • All-Aluminum Evaporator Coil

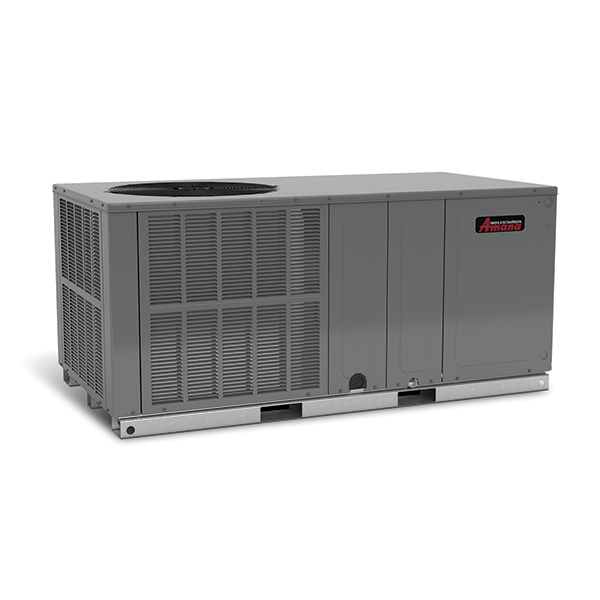

APC14H

Packaged Air Conditioner

View Brochure
Model Family: APC14H
Efficiency SEER/SEER2: 14 SEER
Efficiency EER/EER2: Up to 12 EER
Energy Star Rated: No
Sound Level: Quiet performance
Blower Motor: Multi-speed ECM indoor blower motor
Refrigerant Type: R-410A
Compressor: Single stage compressor
Factory Warranty Parts: 10-Year Parts Limited Warranty
Factory Warranty Compressor: 10-Year Compressor Limited Warranty
Manufacturer's Stated Benefits:
  • Energy-efficient compressor with internal relief valve
  • Multi-speed ECM blower motor
  • All-Aluminum evaporator coil
  • Quiet horizontal discharge
  • Totally enclosed, permanently lubricated condenser fan motor
  • Copper tube / aluminum fin coil
  • Electric heat kits available as field-installed options
  • Heavy-gauge galvanized-steel cabinet with UV-resistant powder-paint finish
  • Louvered condenser coil protection
  • Compressor sound blanket
  • Fully insulated blower compartment has convenient access panels
  • AHRI certified; ETL listed
APCH3

Packaged Air Conditioner

View Brochure
Model Family: APCH3
Efficiency SEER/SEER2: 13.4 SEER2
Efficiency EER/EER2: N/A
Energy Star Rated: No
Sound Level: condenser coil • Compressor sound blanket
Blower Motor: Multi-speed ECM indoor blower motor
Refrigerant Type: R-410A
Compressor: Energy-efficient scroll compressor
Factory Warranty Parts: 10 Year Parts Limited Warranty
Factory Warranty Compressor: 10 Year Parts Limited Warranty
Manufacturer's Stated Benefits:
  • Quiet horizontal discharge
  • All-Aluminum evaporator coil
  • Copper tube / aluminum fin condenser coil
APC14H

Packaged Air Conditioner

View Brochure
Model Family: APC14H
Efficiency SEER/SEER2: 14 SEER
Efficiency EER/EER2: Up to 12 EER
Energy Star Rated: No
Sound Level: Quiet performance
Blower Motor: Multi-speed ECM indoor blower motor
Refrigerant Type: R-410A
Compressor: Single stage compressor
Factory Warranty Parts: 10-Year Parts Limited Warranty
Factory Warranty Compressor: 10-Year Compressor Limited Warranty
Manufacturer's Stated Benefits:
  • Energy-efficient compressor with internal relief valve
  • Multi-speed ECM blower motor
  • All-Aluminum evaporator coil
  • Quiet horizontal discharge
  • Totally enclosed, permanently lubricated condenser fan motor
  • Copper tube / aluminum fin coil
  • Electric heat kits available as field-installed options
  • Heavy-gauge galvanized-steel cabinet with UV-resistant powder-paint finish
  • Louvered condenser coil protection
  • Compressor sound blanket
  • Fully insulated blower compartment has convenient access panels
  • AHRI certified; ETL listed

Gas Heating & Electric Cooling Product Offering

APGM5

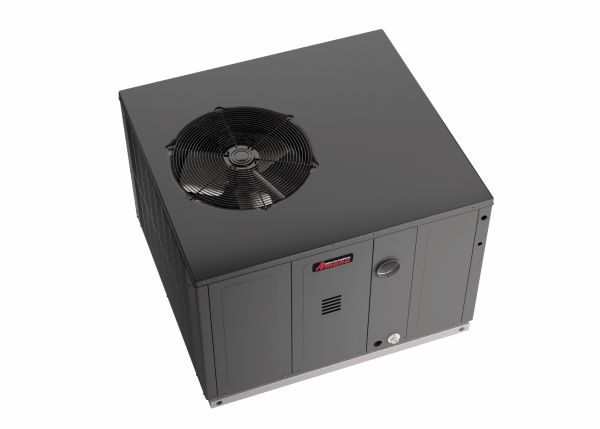

Packaged Gas Electric Unit

View Brochure
Model Family: APGM5
Efficiency SEER/SEER2: 15.2 SEER2
Efficiency EER/EER2: N/A
Annual Fuel Utilization Efficiency: 81% AFUE
Energy Star Rated: ENERGY STAR®
Sound Level: Factory-installed sound blanket
Refrigerant Type: R-410A
Gas Valve: Two-stage gas valve;
Blower Motor: Variable-speed ECM indoor blower motor
Compressor: Two-Stage Scroll Compressor
Factory Warranty Parts: 10-Year parts Limited Warranty
Factory Warranty Compressor: Lifetime Compressor limited Warranty
Heat Exchanger Warranty: Lifetime Heat Exchanger Limited Warranty
Manufacturer's Stated Benefits:
  • Power-assisted combustion
  • All blower operation and all safety circuits complete with self-diagnostics
  • Low and high-pressure switch protection
  • Heavy-duty stainless-steel heat exchanger
APGM3

Packaged Gas Electric Unit

View Brochure
Model Family: APGM3
Efficiency SEER/SEER2: 13.4 SEER2
Efficiency EER/EER2: N/A
Annual Fuel Utilization Efficiency: 81% AFUE
Energy Star Rated: ENERGY STAR®
Sound Level: Compressor sound blanket
Refrigerant Type: R-410A
Gas Valve: Direct spark ignition system
Blower Motor: Multi-speed ECM indoor blower motor
Compressor: Energy-Efficient Scroll Compressor
Factory Warranty Parts: 10-Year Parts Limited Warranty
Factory Warranty Compressor: 10-Year Compressor Limited Warranty
Heat Exchanger Warranty: 10-Year Heat Exchanger Limited Warranty
Manufacturer's Stated Benefits:
  • Stainless-Steel Heat Exchanger
  • All-Aluminum Evaporator Coil
APUM3

Packaged Gas/ Electric/Ultra-Low NOx

View Brochure
Model Family: APUM3
Efficiency SEER/SEER2: 13.4 SEER2
Efficiency EER/EER2: N/A
Annual Fuel Utilization Efficiency: 81% AFUE
Energy Star Rated: ENERGY STAR®
Sound Level: Compressor sound blanket
Refrigerant Type: R-410A
Gas Valve: Direct spark ignition system
Blower Motor: Multi-speed ECM indoor blower motor
Compressor: Energy-efficient scroll compressor
Factory Warranty Parts: 10-Year Parts Limited Warranty
Factory Warranty Compressor: Lifetime Compressor Limited Warranty
Heat Exchanger Warranty: Lifetime Heat Exchanger Limited Warranty
Manufacturer's Stated Benefits:
  • Stainless-Steel Heat Exchanger
  • All-Aluminum Evaporator Coil

Heat Pump Product Offering

APHH5

Packaged Heat Pump

View Brochure
Model Family: APHH5
Efficiency SEER/SEER2: 15.2 SEER2
Efficiency EER/EER2: N/A
Efficiency HSPF/HSPF2: 6.7 HSPF2
Energy Star Rated: No
Sound Level: Compressor sound blanket
Refrigerant Type: R-410A
Blower Motor: Variable-speed ECM indoor blower motor
Compressor: High-efficiency scroll compressor
Factory Warranty Parts: 10-Year Parts Limited Warranty
Factory Warranty Compressor: Lifetime Compressor Limited Warranty
Manufacturer's Stated Benefits:
  • All-aluminum evaporator coil
  • Totally enclosed, permanently lubricated condenser fan motor
  • Fully charged system
APH16M

Energy-Efficient, Variable-Speed Packaged Heat Pump

View Brochure
Model Family: APH16M
Efficiency SEER/SEER2:
Efficiency EER/EER2:
Efficiency HSPF/HSPF2:
Energy Star Rated: ENERGY STAR®
Sound Level: Quiet performance
Refrigerant Type: R-410A
Blower Motor:
Compressor: Two Stage Scroll Compressor
Factory Warranty Parts: 10-Year Parts Limited Warranty
Factory Warranty Compressor: Lifetime Limited Warranty
Manufacturer's Stated Benefits:
  • 2-Year Unit Replacement Limited Warranty
  • High-efficiency scroll compressor with internal relief valve
  • Two-stage heating & cooling
  • ECM blower motor
  • Liquid-line filter drier
  • Copper tube/aluminum fin coils
  • Louvered condenser coil protection
  • All models comply with California Low NOx emissions standards
  • Convertible airflow: horizontal or downflow
  • AHRI certified; ETL Listed
  • Heavy-gauge galvanized-steel cabinet with UV-resistant powder-paint finish
  • Fully insulated blower compartment
  • Louvered condenser coil protection
  • When properly anchored, meets the 2010 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracke
APH16H

Energy-Efficient, Variable-Speed Packaged Heat Pump

View Brochure
Model Family: APH16H
Efficiency SEER/SEER2: Up to 16 Seer
Efficiency EER/EER2: N/A
Efficiency HSPF/HSPF2: Up to 8.2 HSPF
Energy Star Rated: N/A
Sound Level: Quiet performance
Refrigerant Type: R-410A
Blower Motor: Variable-speed ECM indoor blower motor
Compressor: High-efficiency scroll compressor
Factory Warranty Parts: 10-Year Parts Limited Warranty
Factory Warranty Compressor: LIfetime Compressor Limited Warranty
Manufacturer's Stated Benefits:
  • Quiet horizontal discharge
  • All-aluminum evaporator coil
  • Copper tube/aluminum fin coil
  • Totally enclosed, permanently lubricated condenser fan motor
  • Fully charged system
  • High-density foam compressor sound blanket
  • Electric heat kit available as a field-installed option
  • AHRI Certified; ETL Listed
  • Heavy-gauge galvanized-steel cabinet
  • Attractive Architectural Gray powder-paint finish
  • Fully insulated blower compartment has convenient access panels
  • Louvered condenser coil protection
  • One footprint; three heights

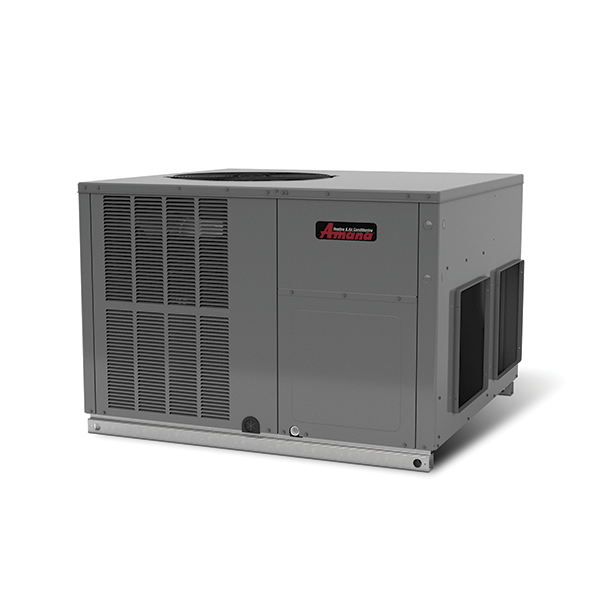

APH14M

Packaged Heat Pump

View Brochure
Model Family: APH14M
Efficiency SEER/SEER2: 14 SEER
Efficiency EER/EER2: N/A
Efficiency HSPF/HSPF2: 8.2 HSPF
Energy Star Rated: N/A
Sound Level: Quiet performance
Refrigerant Type: R-410A
Blower Motor: Multi-speed ECM indoor blower motor
Compressor: Single stage scroll compressor
Factory Warranty Parts: 10-Year Parts Limited Warranty
Factory Warranty Compressor: 10 year limited warranty on compressor
Manufacturer's Stated Benefits:
  • Energy-efficient compressor with internal relief valve
  • Multi-speed ECM blower motor
  • Convertible airflow: horizontal or downflow
  • Liquid-line filter drier
  • Copper tube / aluminum fin coils
  • All-Aluminum evaporator coil
  • Electric heat kit available as a field-installed option
  • AHRI certified; ETL listed
  • Heavy-gauge galvanized-steel cabinet with UV-resistant powder-paint finish
  • Louvered condenser coil protection
  • Compressor sound blanket
  • Fully insulated blower compartment with convenient access panels
  • When properly anchored, meets the 2010 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracke

Dual Fuel / Hybrid Heating Product Offering

APD14M

Energy-Efficient Packaged Dual Fuel Unit

View Brochure
Model Family: APD14M
Efficiency SEER/SEER2: Up to 14.5 SEER
Efficiency EER/EER2: N/A
Annual Fuel Utilization Efficiency: 81% AFUE
Efficiency HSPF/HSPF2: 8.0 HSPF
Energy Star Rated: N/A
Sound Level: Quiet performance
Refrigerant Type: R-410A
Blower Motor: • Multi-speed ECM indoor blower motor
Compressor: High-efficiency scroll compressor
Factory Warranty Parts: 10-Year Parts Limited Warranty
Factory Warranty Compressor: Lifetime Compressor Limited Warranty
Heat Exchanger Warranty: Lifetime Heat Exchanger Limited Warranty
Manufacturer's Stated Benefits:
  • Combines cooling with heat pump and gas heating for optimal year-long performance
  • Two-stage gas valve; natural gas with easy conversion to propane
  • Direct-spark ignition system
  • Power-assisted combustion
  • Louvered cabinet/coil guard
  • Convertible airflow: horizontal or downflow
  • Self-diagnostic blower operation and safety circuits
  • All models comply with California Low NOx emissions standards
  • AHRI certified; ETL listed
  • Heavy-gauge galvanized-steel cabinet with UV-resistant powder-paint finish
  • Louvered condenser coil protection
  • Fully insulated blower compartment for quiet operation
  • When properly anchored, meets the 2010 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracke
APDM3

Packaged Dual Fuel Unit

View Brochure
Model Family: APDM3
Efficiency SEER/SEER2: 13.4 SEER2
Efficiency EER/EER2: N/A
Annual Fuel Utilization Efficiency: 81% AFUE
Efficiency HSPF/HSPF2: 6.7 HSPF2
Energy Star Rated: No
Sound Level: Compressor sound blanket
Refrigerant Type: R-410A
Blower Motor: Multi-speed ECM indoor blower motor
Compressor: Energy-Efficient Scroll Compressor
Factory Warranty Parts: 10-Year Parts Limited Warranty
Factory Warranty Compressor: Lifetime Compressor Limited Warranty
Heat Exchanger Warranty: Lifetime Heat Exchanger Limited Warranty
Manufacturer's Stated Benefits:
  • All blower operation and all safety circuits complete with self-diagnostics
  • High and low-pressure switch protection
  • Heavy-duty stainless-steel heat exchanger
  • er motor • All-Aluminum evaporator coil
APD14M

Energy-Efficient Packaged Dual Fuel Unit

View Brochure
Model Family: APD14M
Efficiency SEER/SEER2: Up to 14.5 SEER
Efficiency EER/EER2: N/A
Annual Fuel Utilization Efficiency: 81% AFUE
Efficiency HSPF/HSPF2: 8.0 HSPF
Energy Star Rated: N/A
Sound Level: Quiet performance
Refrigerant Type: R-410A
Blower Motor: • Multi-speed ECM indoor blower motor
Compressor: High-efficiency scroll compressor
Factory Warranty Parts: 10-Year Parts Limited Warranty
Factory Warranty Compressor: Lifetime Compressor Limited Warranty
Heat Exchanger Warranty: Lifetime Heat Exchanger Limited Warranty
Manufacturer's Stated Benefits:
  • Combines cooling with heat pump and gas heating for optimal year-long performance
  • Two-stage gas valve; natural gas with easy conversion to propane
  • Direct-spark ignition system
  • Power-assisted combustion
  • Louvered cabinet/coil guard
  • Convertible airflow: horizontal or downflow
  • Self-diagnostic blower operation and safety circuits
  • All models comply with California Low NOx emissions standards
  • AHRI certified; ETL listed
  • Heavy-gauge galvanized-steel cabinet with UV-resistant powder-paint finish
  • Louvered condenser coil protection
  • Fully insulated blower compartment for quiet operation
  • When properly anchored, meets the 2010 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracke
